factory supplier manure removal machine for layer cage farm
Description of layer chicken cage
The Layer chicken cage system use hot galvanized system, corrosion resistance, the use life is 15 to 20 years. It has A type layer chicken breeding equipment and H type layer chicken breeding equipment. Use advance ventilation system, lighting system and automatic control system, save energy consumption. Improving labor productivity, decrease the ratio of egg and feed. Using belt manure removal system, make the chicken manure dry become granular, reduce the environment pollution. The rate of chicken manure reuse improved. It is the optimal eco-environment protection breeding equipment for healthy layer chicken.
Specification
| Item | 3 tiers 2 doors | 3 tiers 4 doors | 4 tiers 2 doors | 4 tiers 4 doors | 5 tiers 4 doors |
| Capacity(Set) | 96 birds | 144 birds | 128 birds | 192 birds | 240 birds |
| Capacity(Cell) | 8 birds | 6 birds | 8 birds | 6 birds | 6 birds |
| Cage Size (L*W*H) | 1.2m*1.3m*1.5m | 1.8*1.2m*1.5m | 1.2m*1.3m*2.2m | 1.8m*1.2m*2.2m | 1.8m*1.2m*2.75m |
| Materials | Low carbon steel wire,, Q235 steel wire |
| Surface Treatment | Cold Galvanization Hot Dip Galvanization |
| Bottom wire mesh angle | 9° |
| Lifespan | Cold Galvanization (7-10 years) Hot Dip Galvanization(15-20 years |
| Package | Full container loading:cage and cage frame are no package, some fittings are in plastic bags and carton box Less container loading: packed in wooden box and pallet |
| Name | Description |
| Water pipe | new PVC material,
no deformation,high temperature resistance,not easy to damage. |
| Nipple drinker | warranty>10 years
Stainless steel ball inside nipple drinker |
| Feed trough | loading capacity>60kg/pc, White PVC material,
adults can walking on it and not easy to be damaged during transport |
| Galvanized cage mesh | One cage basket
Door, top mesh, back mesh, bottom mesh and partition mesh |
| Steel cage frame | warranty>20 years
Iron bar, Galvanization surface treatment, |
| Fixing accessories | Connector of water pipe and feeding trough
Cage clips, cage frame nuts and so on |
| Water pressure controlling system | Including the terminal device and water-split device,supply average water to the pipe |
Automatic Feeding Equipment
Automatic numerical control feeding machine, give feed balance, operate steadily, low noise, high efficiency, easy to operate, save man power and long life time.
Automatic Drinking Equipment
The front-end drinking system can use filter, intelligent water meter, import medicine adding device(import dosing pump) and water regulator that can choose by yourself according to your demand. It also design the water cup or V type water trough below the nipples, tail end has the water level display tube, convenient to water observation.
Automatic Egg Collection Equipment
Using import electrical machine, running stable, low noise, the rate of breakdown is low. Corner and drive side use import sealing rubber strip, the rate of egg broken less than five over ten thousand.

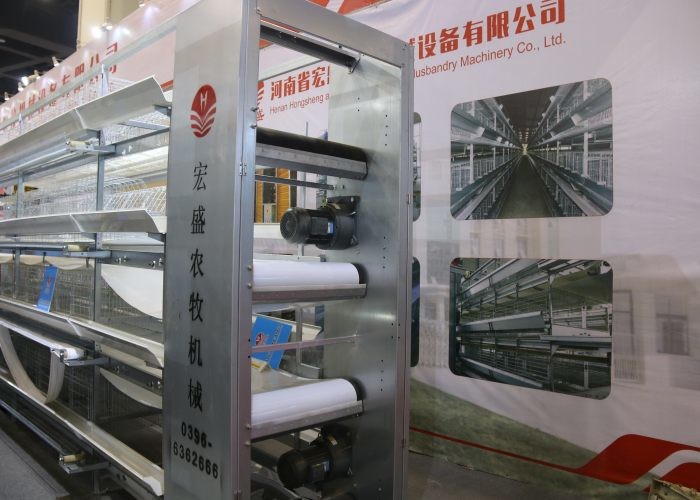

Automatic manure removal equipment
Import PP material manure belt, strong and durable, use our company own anti-meandering technology, control the manure belt meandering effectively.
